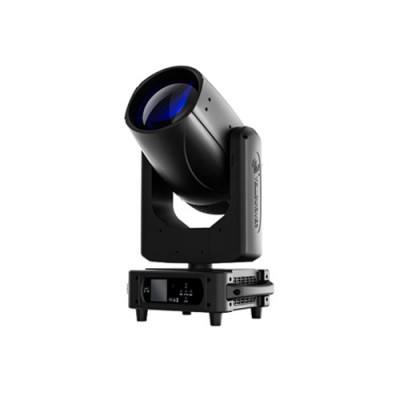

YELLOW RIVER YR-421B
420W Moving head beam (WITH FIXED CABLE and FIXED CLAMP)
Light source parameters:
Light source: 420W
Lifespan : 3500 hours
Color temperature: 7600K
Control parameters:
Optical path lens: combined lens, the light Angle of the whole lamp is 1.4°, which can achieve focusing and sharp beam
Stroboscopic: two-piece stroboscopic 1-30 times/second, support pulse stroboscopic + effect stroboscopic + random stroboscopic
Dimming: Linear dimming
Control signal: DMX512(Digital MultipleX 512)+RDM, in line with international standard light control
System transmission protocol, support console set address code, support DMX interface upgrade software
Control channel: 16/20 channel
Operation mode: console, manual, master-slave, optional DMX512 wireless signal control
Heat dissipation of light source: 2 4-line turbine fans + gyroscope control the rotation of the fan at different angles to accurately blow the lamp +2 high-power fans convection air, active heat dissipation, to ensure more stable products.
Color: 1 color tray: 13 high-gloss coating colors (including 1 CTO and 1 CTB) + white light
Gobo: 1 metal gobo plate: 17 gobo + white light, step conversion pattern, with variable speed jitter, two-way variable speed flow effect
Prism: 1pcs 8 prism +1pcs 8+16 double-layer honeycomb prism, superimposed to obtain 16+24 double-layer prism, can be independently rotated, with two-way variable speed rotation effect
Six-color tray: 6 high-gloss coating colors, with prism can produce six-color prism effect
Frost: 1 independent frost plate, which can convert the beam into dyeing effect
Scanning: horizontal 540 degrees 2.3S/ cycle, vertical 270 degrees 1.2S/ cycle, three-phase motor, using photoelectric reset + Hall correction + zero point, end point detection of double precision reset, so that positioning is more accurate, while automatic error correction, with automatic return function, smooth subdivision technology runs more smoothly
Display function: The screen can be reversed, Chinese and English switch, automatic screen off/persistent bright screen, can display the bright bubble time, fault detection, software version information, factory Settings can be restored
Over temperature protection: high sensitivity ceramic temperature control full control, can automatically cut off the protection of the light source
Light bulb opening mode: can set automatic lighting bubble, manual lighting bubble and console lighting bubble
Safety protection: Automatically cut off the power supply when the body overheats or the system fails
Working parameters:
Operating voltage: AC100V-240V (50/60HZ)
Total rated power: 800W
Power factor: 0.99
Rated current: 3.64A
Maximum ambient temperature: 40 degrees
Light parameters:
Wire: The high pressure part uses high temperature resistant silicone wire, the weak part uses 1332 Teflon high temperature wire
Shell: high temperature and fire retardant engineering plastic
Display: Touch LCD display +5 mechanical buttons
Power interface: Hand 1.5 m power cord +16A waterproof plug, more convenient project
Signal interface: hand in hand 1.5 meters to connect the signal line, the project is more convenient
IP rate: IP20
Accessories: Equipped with folding integrated light hook, easy to install engineering performance
Net weight: 18KG
