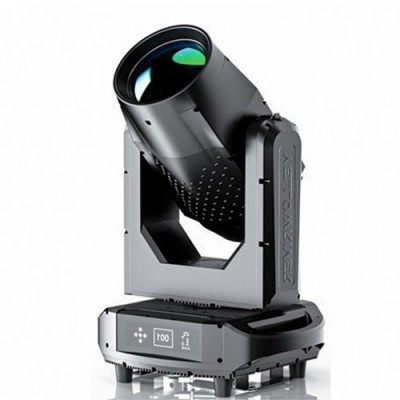

YELLOW RIVER 120W Laser Moving Head Beam
Light source parameters:
Light source: 120W laser
Average life: 12,000 hours
Color temperature: 8000K
Controlling parameter：
Optical path lens: composite lens, the whole lamp light output Angle is 0.9, can achieve focusing, the beam is sharp and full
strobe: Electronic strobe 1-30 times/second, support standard strobe + average strobe + random strobe
Dimming: Linear dimming
Control signal: DMX512 (Digital MultipleX 512) +RDM, in line with the international standard lighting control transmission protocol, supports console address code setting, and supports DMX interface upgrade software
Control channel: standard mode 16CH/ extended mode 19CH
Operation mode: console, manual, master and slave
Color: 20 high gloss coating colors + white light, linear or step conversion colors, with bidirectional variable speed flow effect and half-color rainbow effect
Pattern: 1 metal pattern disk: 22 patterns + white light, step conversion pattern, with variable speed jitter, two-way variable speed flow effect
Prism: 8 prism ++ cellular prism, the prism of two prism discs can be superimposed on each other, can rotate independently, and has a bidirectional variable speed rotation effect
Eight-color plate: 8 high-gloss coated colors, combined with prism to produce eight-color prism effect
Atomization: 1 independent atomization plate, which can convert the light beam into a washing effect
Scan: horizontal 540 degrees 3.2S/cycle, vertical 270 degrees 1.3S/cycle, three-phase motor, using photoelectric reset + Hall correction + zero point and end point detection of double precision reset, making the positioning more accurate, at the same time can automatically correct, with automatic return function, using smooth subdivision technology to run more stable
Display function: touch LCD screen, the screen can be reversed, Chinese and English switching, automatic screen off/persistence of screen, can display bright bubble time, fault detection and control, software version information, fan speed, can restore factory Settings
Light source heat dissipation: using internal circulation + copper tube heat conduction technology, active heat dissipation, to ensure the product is more stable
Safety protection: when the body is overheated or the system fails, the power supply is automatically cut off
Working parameter：
Working voltage: AC100V-240V (50/60HZ)
Rated total power: 300W
Power factor: 0.99
Maximum temperature of use environment: 40 degrees
Lighting parameters：
Shell: the whole machine is cast aluminum sealed waterproof, high temperature resistant, radiation resistant and scratch resistant
Pull out the bottom box: open the display panel to directly pull out and replace the bottom box: power supply, drive board, fan, display board
Wire: high temperature resistant silicone wire is used in the high voltage part, and 1332 Teflon high temperature wire is used in the low voltage part
Display: TFT LCD screen display +4 touch keys (screen password: up, up,down,down)
Power interface: waterproof PowerCon one in and one out
Signal interface: waterproof signal socket 3 cores male + female
Waterproof grade: IP66
Net weight: 30.5KG
