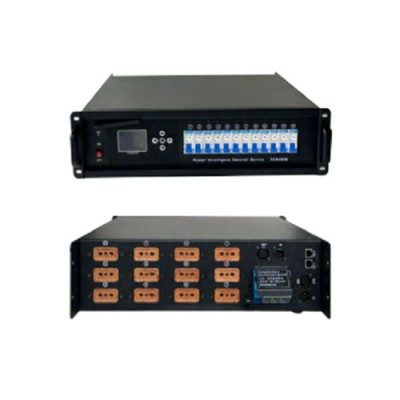

YELLOW RIVER YR-12-I
6KW with DMX512
1. Input: Three-phase AC 380V ±10%, frequency 50Hz ±5%.
2. Rated Power: 12 channels × 6kW; Suitable for any load. 12 independent outputs, each unit can handle up to 72kW.
3. Chint brand high-breakage air circuit breaker with fast overload and short-circuit protection.
4. Built-in 3-inch LCD display for real-time monitoring of current, voltage, and other parameters for each output.
5. 12-channel 40A bakelite output sockets, high-temperature resistance and high insulation.
6. Supports four control modes: international DMX512 signal protocol, Art-net lighting network protocol, intelligent control customization protocol, and mobile control.
7. Built-in 12 relays with remote control, using nickel-plated copper contacts for arc resistance and long life, supporting over 100,000 switching cycles.
8. 5-pin XLR input and output signal ports. In special circumstances, two units can be connected in series, sharing the same motherboard signal control.
9. Built-in Wi-Fi hotspot allows direct mobile control via the device hotspot.
10. Real-time control is available through the integrated intelligent control system, allowing for independent control of the electrical interface. The host computer can also manually activate and deactivate each circuit via the physical buttons on the switch cabinet, or operate the lighting console in real time.
11. The initial on/off state of each circuit can be independently set.
Mode options: A: Power-on Execution, B: Delayed Execution, and C: Immediate Execution.
Note: In Power-on Execution mode, after the switch cabinet is powered on, each circuit will be powered on for 0.6 seconds. This provides a buffered current flow after powering on, further protecting the device. This mode can replace the timer function.
12. Power can be turned on and off directly from the panel or wall panel, without the need for the intelligent control unit.
13. Multiple devices can be networked, enabling single-touch power on and off for all networked devices.
14. Core components: Chint circuit breakers and Zhujiang national standard cables ensure electrical safety and durability. 15. Size: International standard 3U chassis
