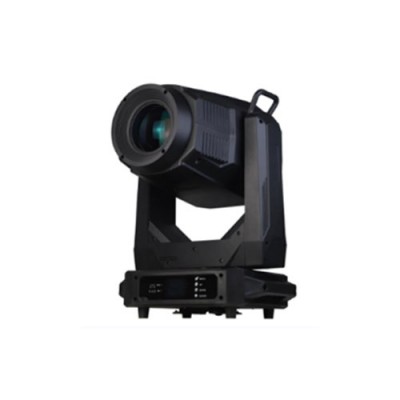

YELLOW RIVER YR-800Q
LED Moving Head Frame Light
Light source parameters:
Light source: 800W LED module
Average life: 20,000 hours
Color temperature: 6300K
Explicit reference: Standard mode > 70, high display mode > 90
Pure light source luminous flux: 42500LM
Control parameters:
Optical path lens: combined lens, the whole lamp linear focusing magnification 4.5° -50 °, the spot evenly full
Stroboscopic: electronic stroboscopic 1-30 times/second
Dimming: Linear dimming
Control signal: DMX512(Digital MultipleX 512)+RDM, in line with international standard light control transmission protocol, support console set address code, support DMX interface upgrade software
Control channels: 36 channels
Operation mode: console, manual, master-slave, optional DMX512 wireless signal control
Color: 7 high-gloss coating colors + white light, half-color effect, with two-way variable speed flow effect
CMY: An independent CMY color mixing system
CTO: Independent 3200K-6300K color temperature linear adjustment
Metal gobo: 8 patterns + white light, support replacement, with variable speed jitter, two-way variable speed flow effect
Glass gobo: 7 patterns + white light holes, with rotation function, index function, two-way variable speed flow effect
Effect wheel: 1 flame plate, can simulate the super dazzling sensation of moving flame effect
Prism: 8 prism +6 rows of mirrors, can be rotated independently, can be rotated bidirectional variable speed
Frost: 1 independent atomizer, 0-100% linear frost effect
Profile system: 8 motor four cutting pieces, each piece can be individually cut light, cutting light edge flat without deformation, cutting pattern can be rotated 160 degrees
Aperture: An independent optical brake with 5%-100% smooth adjustment
Scanning: horizontal 540 degrees, vertical 270 degrees, using photoelectric reset + Hall correction + zero point, end point detection of double precision reset, so that positioning more accurate, while automatic error correction, with automatic return function, smooth subdivision technology to run more smoothly
Display function: equipped with a 2.8 inch touch screen, the screen can be automatically reversed, Chinese and English switching, automatic screen off/lasting bright screen, can display the light source time, can monitor the lamp temperature, fault detection, software version information, can restore factory Settings
Light source on mode: On and off
Over temperature protection: high precision temperature control full process inspection, can automatically cut off the protection of the light source
Working parameters:
Operating voltage: AC100V-240V (50/60HZ)
Total rated power: 950W
Power factor: 0.99
Rated current: 4.32A
Maximum ambient temperature: 40 degrees
Lamp parameters:
Wire: The high pressure part uses high temperature resistant silicone wire, the weak part uses 1332 Teflon high temperature wire
Shell: high temperature resistant engineering plastic
Display: LCD display +4 mechanical buttons
Power interface: Twist brittle head, one blue (in)
Signal interface: Signal socket 3-core male + female, can plug DMX512 wireless signal receiver
IP rate: IP20
N.W. : 34.3KG
